Clearaudio NANO PHONO V2

The nano phono V2 phonostage isn't ruffled by anything. External interferences are no longer an issue with this fine piece of engineering.

AMPLIFICATION	34 dB (MM mode) 65 dB (MC mode)
INPUT LOAD	47 kOhm / 220 pF / MM mode User MC mode

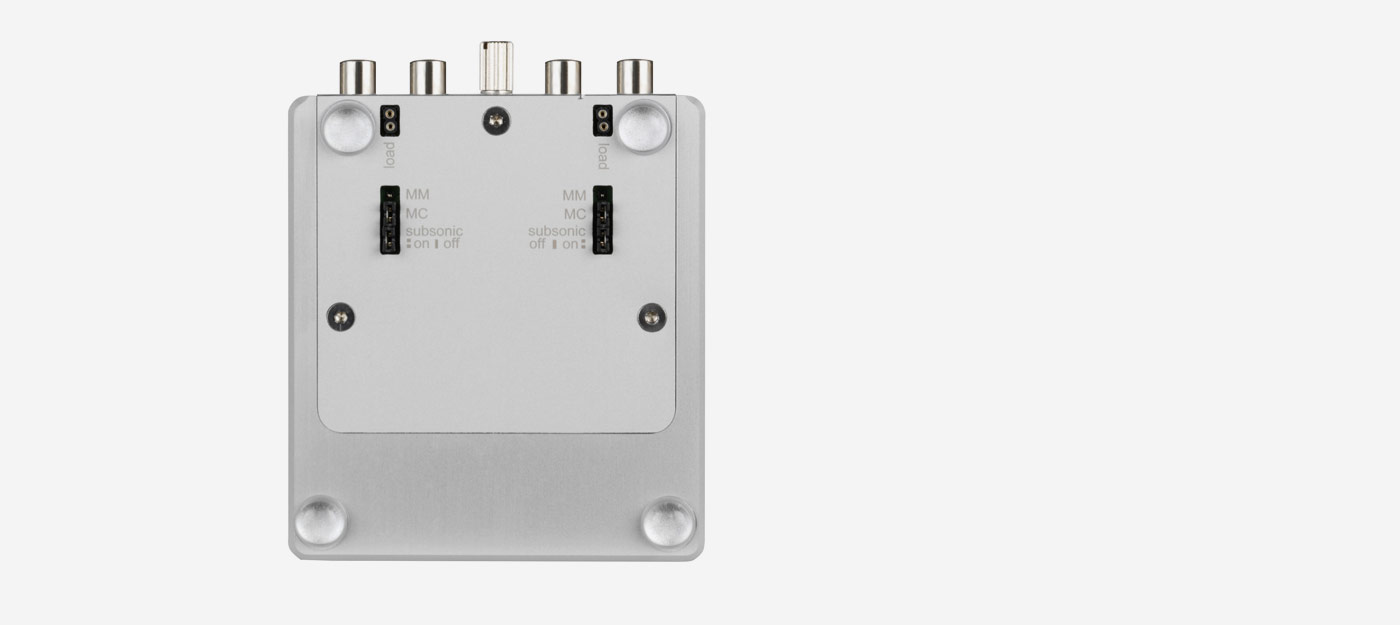

MM / MC INPUT	switchable (at bottom)
SUBSONIC FILTER	switchable (at bottom)
RIAA	Nach RIAA (Zeitkonst.: 75 μs / 318 μs / 3180 μs)
RIAA ACCURACY	± 0.4dB @ 20Hz-50kHz
THD	< 0,04%
HEADROOM	18 dB / MC
SIGNAL TO NOISE RATIO	81 dB (A) (MM – Mode) 70 dB (A) (MC – Mode)
CHANNEL SEPARATION	> 80dB @ 1kHz
MAX. OUTPUT VOLTAGE	10V eff. (1kHz)
POWER CONSUMPTION	Max. consumption: 2.3 Watt in operation: 2.3 Watt Standby mode: < 0.3 Watt Off mode: 0.0 Watt
POWER SUPPLY	±18V DC / 300mA (external power supply)

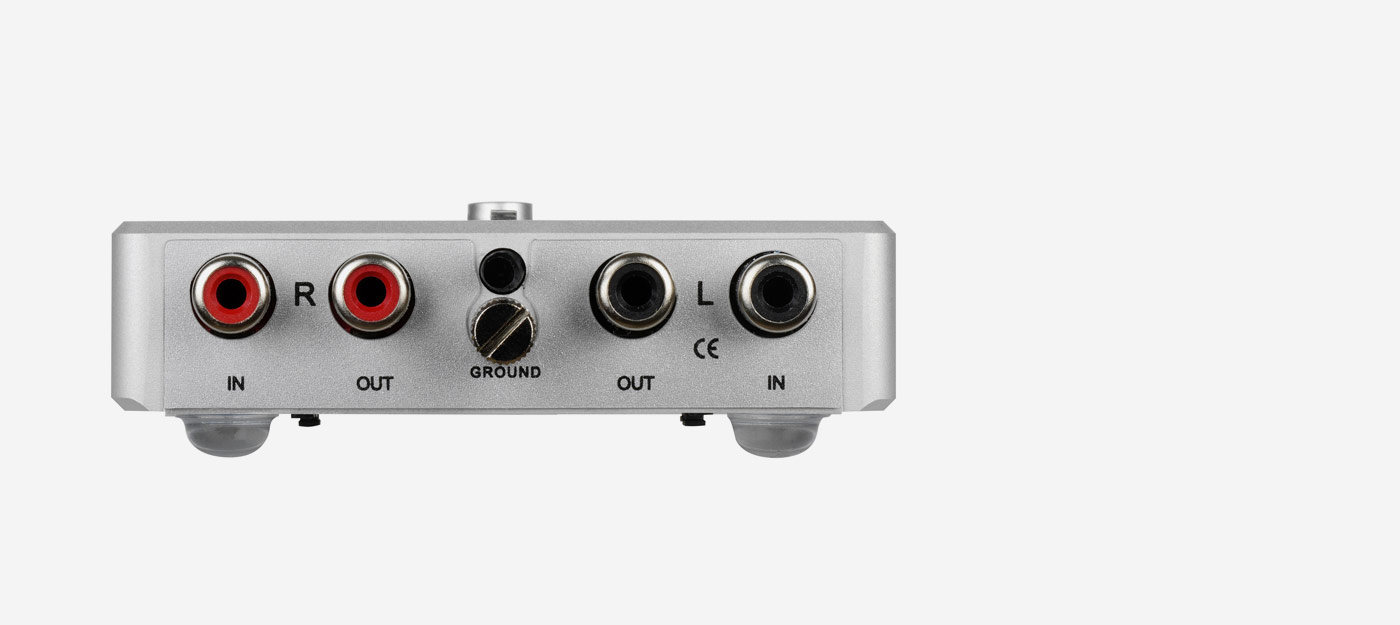

OUTPUTS	unbalanced (RCA)
WEIGHT	Approx. 500 g (preamp and power supply)
DIMENSIONS (W/D/H in inches)	3.35 x 4.17 x 0.98
DIMENSIONS (W/D/H in mm)	85 x 106 x 25
